Specifications

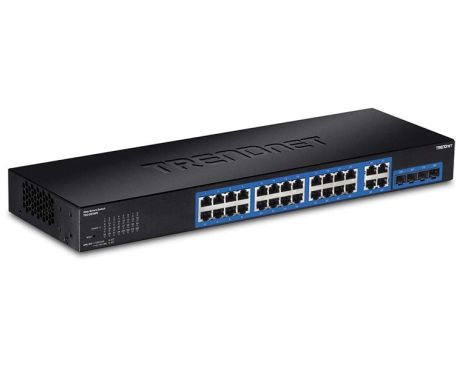

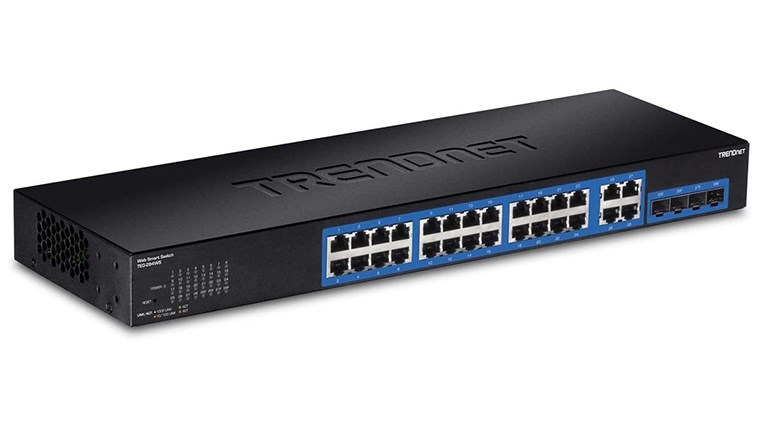

TRENDnet's 28-Port Gigabit Web Smart Switch, model TEG-284WS, is a cost-effective switch solution for high-speed gigabit applications.
Advanced traffic management, access management controls, trouble shooting, and monitoring protocol support makes this a powerful backbone solution for SMB networks.
The web-based management interface offers features for traffic control, troubleshooting, access controls, and monitoring.
Web Smart Management Provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.
Main Features
- Total Number of Network Ports: 28
- Modular Port/Expansion Slot
- Details: 28 x Gigabit Ethernet Network, 4 x Gigabit Ethernet Expansion Slot Media Type Supported: Optical Fiber, Twisted Pair Ethernet Technology: Gigabit Ethernet Network Technology: 10/100/1000Base-T, 1000Base-X Number of Total Expansion Slots:
- Expansion Slot Type: SFP Shared SFP Slot
- Number of SFP Slots: 4
- Layer Supported: 2
- Manageable Power Source: Power Supply
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
| Specifications | |
| Standards | IEEE 802.1d |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.1w | |
| IEEE 802.1X | |
| IEEE 802.1ab | |
| IEEE 802.3 | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.3ab | |
| IEEE 802.3ad | |
| IEEE 802.3az | |
| Device Interface | 24 x Gigabit ports |
| 4 x shared Gigabit ports (RJ-45/SFP) | |
| LED indicators | |
| Data Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) |
| Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) | |
| Gigabit Ethernet: 2000Mbps (full duplex) | |
| Performance | Switch fabric: 56 Gbps |
| RAM buffer: 512KB | |
| MAC Address Table: 8K entries | |
| Jumbo Frames: 10KB | |
| HOL Blocking Prevention | |
| Forwarding rate: 41.7Mpps (64-byte packet size) | |
| Management | HTTP/HTTPS (SSL v2/3 TLS) Web based GUI |
| SNMP v1, v2c, v3 | |
| RMON v1 | |
| Static Unicast MAC Address | |
| Enable/disable 802.3az Power Saving | |
| LLDP and LLDP-MED | |
| Virtual Cable Diagnostics Test | |
| IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration | |
| MIB | IP FORWARD TABLE MIB RFC 1354 |
| RMON MIB RFC 1271 | |
| IPV4 MIB RFC 1213 | |
| IPV6 MIB RFC 2465 | |
| GVRP MIB IEEE 802.1Q-VLAN | |
| LA MIB IEEE 802.3ad | |
| LLDP MIB IEEE 802.1AB | |
| IGMP SNOOPING MIB RFC 2933 | |
| MLD SNOOPING MIB RFC 3019 | |
| PRIVATE VLAN MIB IEEE 802.1Q | |
| DHCPSNOOP MIB RFC 2026 | |
| QOS MIB RFC 4323 | |
| SNMP MIB RFC 3415 | |
| STP MIB RFC 4318 | |
| PNAC MIB IEEE 802.1x | |
| VLAN MIB IEEE 802.1q | |
| DNS MIB RFC 1611 | |
| ACL MIB | |
| BANDWIDTH CTRL MIB | |
| LBD MIB | |
| MIRROR MIB | |
| IPV6 NEIGHBOR MIB | |
| SNTP MIB | |
| STORM CTRL MIB | |
| STATISTICS MIB | |
| Tool MIB | |
| VOICE VLAN MIB | |
| DOS MIB | |
| Spanning Tree | IEEE 802.1D STP (Spanning Tree protocol) |
| IEEE 802.1w RSTP (Rapid Spanning Tree protocol) | |
| IEEE 802.1s MSTP (Multiple Spanning Tree protocol) | |
| Link Aggregation | Static Link Aggregation |
| 802.3ad Dynamic LACP | |
| Quality of Service (QoS) | 802.1p Class of Service (CoS) |
| DSCP (Differentiated Services Code Point) | |
| Bandwidth Control per port | |
| Queue Scheduling: Strict Priority, Weighted Round Robin (WRR) | |
| VLAN | Multiple management VLAN assignment |
| Asymmetric VLAN | |
| 802.1Q Tagged VLAN | |
| Dynamic GVRP | |
| Up to 256 VLAN groups, ID Range 1-4094 | |
| Private VLAN (Protected Ports) | |
| Voice VLAN (10 user defined OUIs) | |
| Multicast | IGMP Snooping v1, v2, v3 (per VLAN) |
| Static Multicast Address | |
| Up to 256 multicast entries | |
| Port Mirror | RX, TX, or Both |
| One to one | |
| Encryption | 802.1X Port-Based Network Access Control , RADIUS, TACACS+ |
| Local Dial In User Authentication | |
| DHCP Snooping (per VLAN) | |
| Loopback Detection | |
| Duplicated Address Detection | |
| Trusted Host | |
| Denial of Service (DoS) | |
| ACL IPv4 L2-L4 & IPv6 | MAC Address |
| VLAN ID | |
| Ether Type (IPv4 only) | |
| IP Protocol 0-255 | |
| TCP/UDP Port 1-65535 | |
| 802.1p | |
| DSCP (IPv4 only) | |
| IPv6 Address (IPv6 only) | |
| Compatibility | Optional Software Utility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server |
| Special Features | Fanless Design |
| IPv6 | |
| 802.3az power saving | |
| Rack mountable | |
| Power | Input: 100 - 240 V AC, 50/60 Hz, internal power supply |
| Consumption: 17.3 Watts (max.) | |
| MTBF | 787,004 hours |
| Operating Temperature | -5 – 50°C (23 - 122°F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions | 440 x 140 x 44mm (17.4 x 5.51 x 1.74 in.) |
| Rack mountable 1U height | |
| Weight | 2.15kg (4.73 lbs.) |
| Certifications | CE |
| FCC | |
| UL | |
