24x Gigabit Ethernet layer 3 Smart Switch, 1x SFP cage, LCD, 1000mW 802.11b/g/n Dual Chain wireless, 600MHz CPU, 128MB RAM, Metal desktop case, RouterOS L5

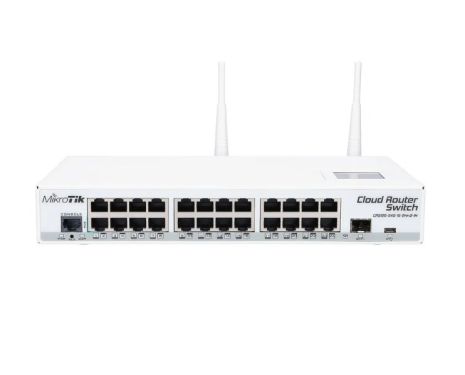

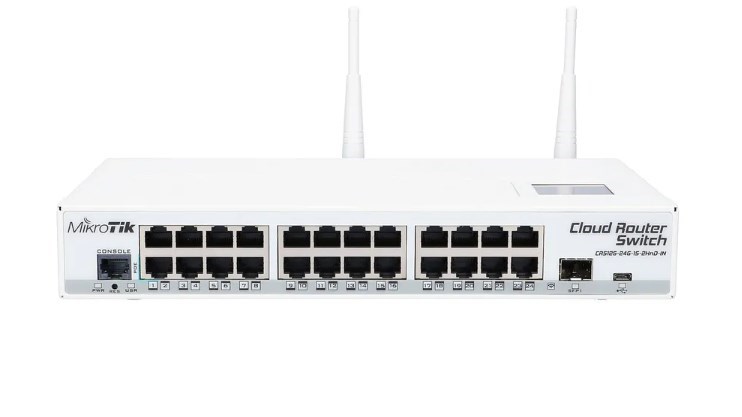

CRS125-24G-1S-2HnD-IN
Cloud Router Switch is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
What’s more - this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device - ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.
Perfect SOHO gateway router, switch, 11n AP all in one box
• Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
• RouterOS gateway/firewall/VPN router with passive cooling
• up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)
• 1000mW high power 2.4GHz 11n wireless AP
| Specifications | |
| Product code | CRS125-24G-1S-2HnD-IN |
| SFP DDMI | Yes |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| Architecture | MIPS-BE |
| 10/100/1000 Ethernet ports | 24 |
| Wireless standards | 802.11b/g/n |
| Wireless chip model | AR9344 |
| Number of USB ports | 1 |
| Power Jack | 1 |
| PoE in | Yes |
| Supported input voltage | 8 V - 28 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 285x145x45mm |
| Operating System | RouterOS |
| Tested ambient temperature | -35C to +65C |
| License level | 5 |
| Antenna gain DBI | 4 |
| CPU | AR9344 |
| Max Power consumption | 19W |
| SFP ports | 1 |
| USB slot type | microUSB type AB |
| Number of chains | 2 |
| Serial port | RJ45 |
| Storage type | NAND |
| Storage size | 128 MB |
