NeoGate TA810 - Analog VoIP Gateway - 8 FXO Ports
567.30€
756.40€
Description

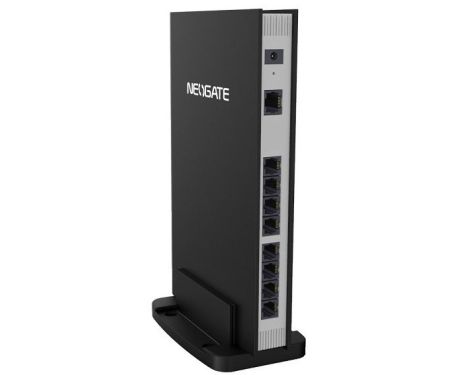

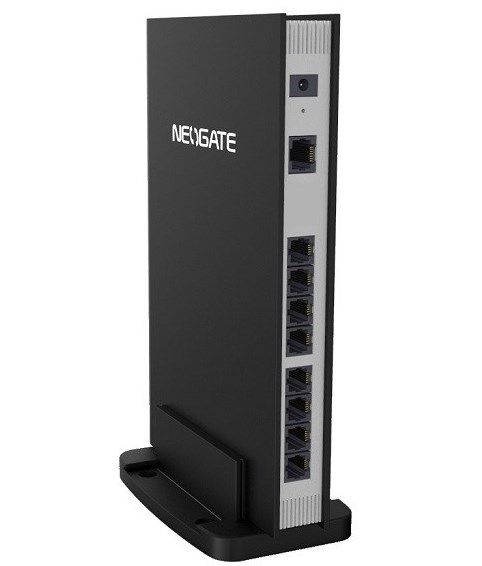

Yeastar TA810 allows to connect 8 PSTN lines or PABX extension ports for a wide range of IP applications. The high quality and reliable TA810 is ideal for call centers, multi-location companies, and carrier services.
TA810 is a stand-alone FXO VoIP gateway with carrier-grade features and reliability.
- 8 FXO ports
- Fully compliant with SIP and IAX2
- Flexible calling rules
- Superb voice compression with industry standard codecs
- Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
- Tested and certified with Elastix, BroadSoft, and others
| Specifications | ||
| Interfaces | Ports | 8 FXS Ports |
| Telephony Interfaces | RJ11 | |
| Network Interfaces | 1 10/100BASE-T Ethernet | |
| Indicators | Ports Status and Activity LEDs | |
| Media Processing | Protocol | SIP (RFC3261), IAX2 |
| Transport | UDP, TCP, TLS, SRTP | |
| Codec | G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A/B, GSM, ADPCM | |
| Voice Capability | ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC | |
| DTMF Mode | RFC2833, SIP Info, In-band | |
| Fax | T.30 | |
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging | |
| Telephony Features | Call Handling | Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection |
| Security/ IP Services | Firewall | Built-in Firewall, IP Blacklist, Attack Alert |
| Network | DHCP, DDNS, OpenVPN, Static Route, VLAN | |
| Nat Traversal | Static NAT, STUN | |
| Network Protocol | FTP, TFTP, HTTP, HTTPS, SSH | |
| Management | Protocol | TR-069 |
| Provisioning | Web GUI, Auto Provisioning, Backup and Restore, Firmware Upgrade by HTTP/TFTP | |
| Configuration | Remote Management, Packet Capture, System Logs, Voice Menu for FXS Gateways Basic Configuration, API | |
| Connectivity | Signaling | FXO Loop Start, FXO Kewl Start |
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID | |
| Disconnect Methods | Busy Tone, Polarity Reversal | |
| Short & Long Haul | - | |
| Physical | Power | 12V, 1A |
| Dimensions (L × W × H) (mm) | 200 x 137 x 25 | |
| Operation Temperature | 0°C to 40°C, 32°F to 104°F | |
| Storage Temperature | -20°C to 65°C, -4°F to 149°F | |
| Humidity | 10-90% non-condensing | |
| Mounting | Desktop, Wall-mount | |
| Compatibility | Softswitch and IP-PBX | Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft |
