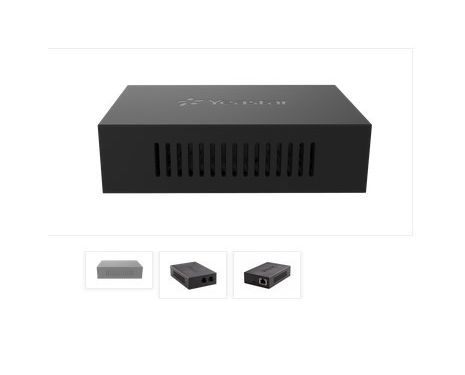

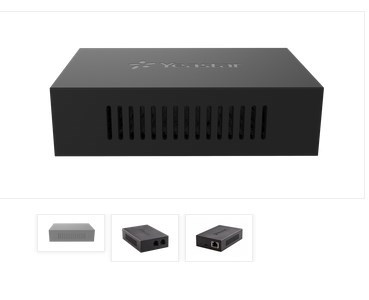

NeoGate TA200 - Analog VoIP Gateway - 2 FXS ports
93.00€
124.00€
Description
Yeastar TA200 supports 2 FXS ports to connect analog phones to IP-based data networks. It is compliant with SIP industry standard and compatible with various PBX, IP-PBX, softswitches, and phones.
TA200 is a stand-alone FXS VoIP gateway with carrier-grade features and reliability.
- 2 FXS ports
- Fully compliant with SIP and IAX2
- Flexible calling rules
- Superb voice compression with industry standard codecs
- Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
- Tested and certified with Elastix, BroadSoft, and others
| Specifications | |
| RJ11 FXS Ports | 2 |
| LAN | 1 10/100 Mbps |
| Micro USB Port | 1 |
| Protocol | SIP (RFC3261) |
| Transport | UDP, TCP, TLS, SRTP |
| Codec | G.711 (alaw/ulaw), G.729A/B |
| Voice Capability | ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer |
| DTMF Mode | RFC2833, SIP Info, In-band |
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging |
| Network | DHCP, OpenVPN, PPPoE, Static Route, VLAN |
| Network Protocol | FTP, TFTP, HTTP, HTTPS, SSH |
| Signaling | FXS Loop Start, FXS Kewl Start |
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID |
| Disconnect Methods | Busy Tone, Polarity Reversal |
| Power | DC 5V 1A |
| Dimensions (L × W × H) (mm) | 85 × 58 × 24 |
| Operation Range | 0°C to 40°C, 32°F to 104°F; |
| Storage Range | -20°C to 65°C, -4°F to 149°F |
| Humidity | 10-90% non-condensing |
| Mounting | Desktop |
| Compatibility | Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix. |
