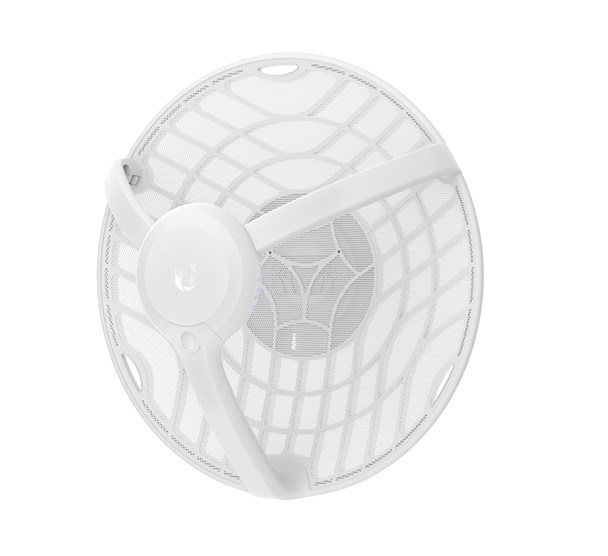

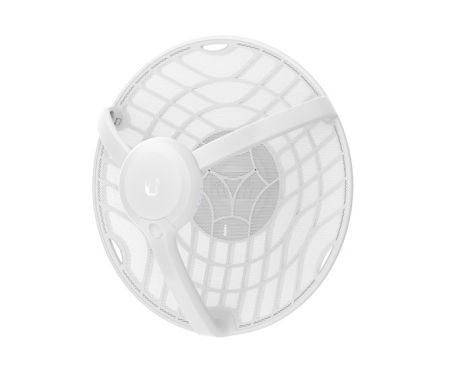

airMAX GigaBeam Long-Range 60/5 GHz Radio GigaBeam airMAX AC 60 GHz/5 GHz Radio with 1+ Gbps
| Specifications | ||
|---|---|---|
| Mechanical | Dimensions |
Ø415 x 303 mm (Ø16.34 x 11.93") |
| Weight |
Without Mount: 1.3 kg (2.87 lb) With Mount: 1.8 kg (3.97 lb) |
|
| Enclosure Characteristics |
Alluminum / UV Stabilized Polycarbonate |
|
| Hardware | Processor |
Quad-Core ARM Cortex A7 |
| Memory |
256 MB DDR3 |
|
| Networking Interface |
10/100/1000 Mbps Ethernet RJ45 |
|
| RF Connections |
Internal |
|
| Max. Power Consumption |
11W |
|
| Power Method |
Passive PoE (Pairs 4, 5+; 7, 8-) |
|
| Power Supply |
24VDC, 0.5A Gigabit PoE Adapter |
|
| Supported Voltage Range |
22 to 26VDC |
|
| ESD/EMP Protection |
Air/Contact: ± 24kV |
|
| Operating Temperature |
-40 to 60° C (-40 to 140° F) |
|
| Operating Humidity |
5 - 95% Noncondensing |
|
| Certifications |
FCC, IC, CE |
|
| LEDs | Power |
Flashing White: Bootup in Progress White: System Ready, Ubiquiti® Internet Service Provider (UISP™) Not Configured, Not Connected Flashing Blue: System Ready, UISP Configured, but Cannot Connect Blue: System Ready, UISP Configured and Connected |
| Ethernet |
Flashing Blue: Ethernet Traffic Detected |
|
| 5G |
Blue: Active Connection |
|
| 60G |
Blue: Active Connection |
|
| Software | OS |
airOS® |
| Operating Modes |
PtP |
|
| Ubiquiti Specific Features |
Integrated 60 GHz and 5 GHz Radios, Discovery Protocol |
|
| Security |
WPA2 AES Only |
|
| Dashboard |
Yes |
|
| Wireless Settings |
Yes |
|
| Network Settings |
Yes |
|
| System |
Yes |
|
| Services |
UISP, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery |
|
| Tools |
Antenna Alignment Tool, Discovery Utility, Traceroute, Speed Test |
|
| Minimum Software Requirements |
Any Modern Web Browser |
|
