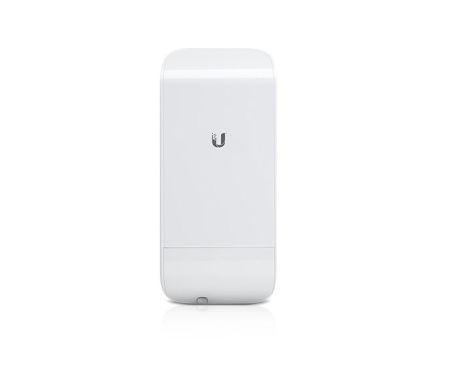

NanoStation Loco M5, antenna 2x13dBi, outdoor, MIMO 5GHz, AirMax Station
104.16€
138.88€
| Specifications | |
| Dimensions | 161 x 31 x 80 mm |
| Weight | 180 g |
| Power Supply (PoE) | 24 V, 0.5A |
| Max. Power Consumption | 5.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Frequency | Worldwide: 5170-5875 MHz USA: 5725-5850 MHz USA DFS: 5250-5850 MHz |
| Gain | 13 dBi |
| Networking Interface | (1) 10/100 Ethernet Port |
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB SDRAM, 8 MB Flash |
| Frequency | 5 GHz |
| Cross-pol Isolations | 20 dB Minimum |
| Max. VSWR | 1.4:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included) |
| RF Connector | External RP-SMA |
| Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Wireless Approvals | FCC Part 15.247, IC RS210 |
| RoHS Compliance | Yes |
| Shock & Vibration | ETSI300-019-1.4 |
