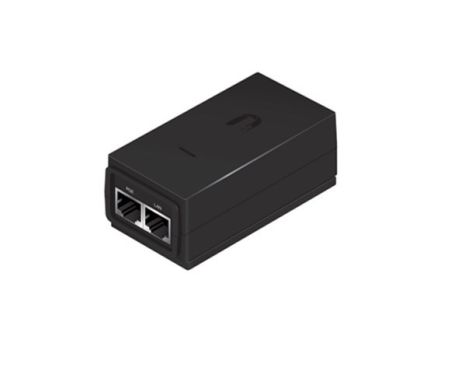

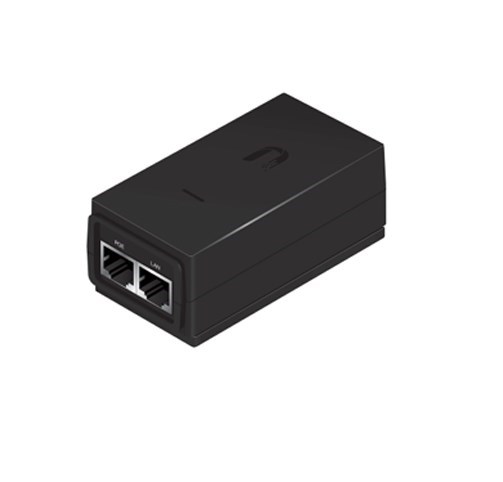

POE-24, Gigabit PoE adapter 24V/0,5A (12W), w/power cable (EU)
22.32€
29.76€
Description
This Ubiquiti POE-24-12W-G Gigabit Power over Ethernet PoE Injector/adapter is suitable for use with Ubiquiti Wireless Networking devices.
This Ubiquiti PoE adapter is supplied with a power cord.
Key Features
- Gigabit Power over Ethernet adapter with 24V/12W capacity.
- Allows long Ethernet cable runs, typically up to 100 metres.
- LAN Activity Indicator detects if LAN is connected to device Earth grounding/ESD protection.
| Specifications | |
| Dimensions | 87 x 44 x 29 mm (3.43 x 1.73 x 1.14") |
| Weight | 99.4 g (3.51 g) |
| Output Voltage | 24VDC @ 0.5A |
| LAN Activity Indicatior | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.3A @ 120VAC, 0.2A @ 240VAC |
| Inrush Current | |
| Efficiency | 75+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 50 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | - |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connectior | IEC-320 C6 |
| Data IN / PoE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 µs) Power |
| Peak Pulse Current | 36A (10/1000 µs) Data |
| Shunt Capacitance | |
| Response Time | |
| Certifications | CE, FCC, IC, UL |
