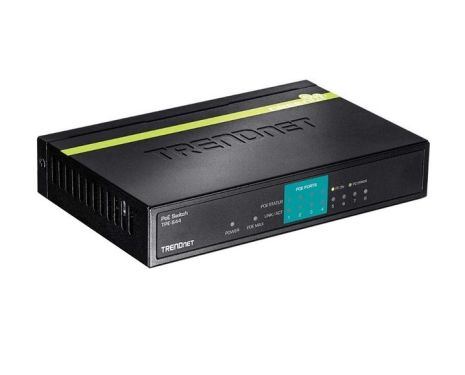

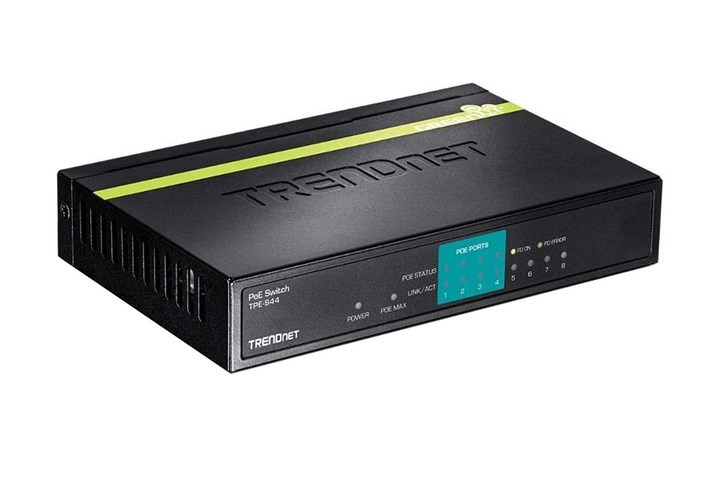

8-Port 10/100Mbps PoE Switch. (4 PoE and 4 standard 10/100Mbps ports)
Description
TPE-S44 8-Port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure.
Features
• IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
• 8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports
• Built-in 4 PoE Ports (Port 1 ~ Port 4)
• Supports PoE Power Maximum 15.4 watts for each POE port
• Supports PoE Powered Device(PD) classifi cation identify
• Full Wire-Speed Non-Blocking Reception and Transmission
• Store and Forward Switching Method
• 96Kbytes RAM Data Buffer and 1K entries MAC Address Table
• Extensive Diagnostic LED’s on the Front Panel
• IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode
| Specifications | |
| Standards | IEEE 802.1p QoS |
| IEEE 802.3 | |
| IEEE 802.3u | |
| IEEE 802.3af (15.4 Watts / port) | |
| IEEE 802.3az | |
| IEEE 802.3x | |
| Device Interface | 4 x 10/100Mbps PoE ports (port 1~4) |
| 4 x 10/100Mbps Fast Ethernet ports | |
| LED indicators | |
| Data Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) |
| Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) | |
| Performance | Data RAM Buffer: 96KB |
| Switch Fabric: 1.6Gbps | |
| MAC Address Table: 2 K entries | |
| Forwarding rate: 1.19Mpps (64-byte packet size) | |
| Special Features | GREENnet energy saving technology |
| Power | Input: 110-240 V AC, 50 / 60 Hz, 0.75 A |
| Output: 48 V DC, 0.8 A | |
| Consumption: 2.1 Watts (Max. without PD) | |
| PoE | PoE budget: 30 Watts |
| Pin 1, 2 for power+ and pin 3, 6 for power- (mode A) | |
| Operating Temperature | 0 – 45 °C (32 - 113 °F) |
| Operating Humidity | Max. 90% non-condensing |
| Dimensions | 150 x 96 x 28mm (5.9 x 3.8 x 1.1 in.) |
| Weight | 370g (12.9 oz.) |
| Certifications | CE |
| FCC | |
