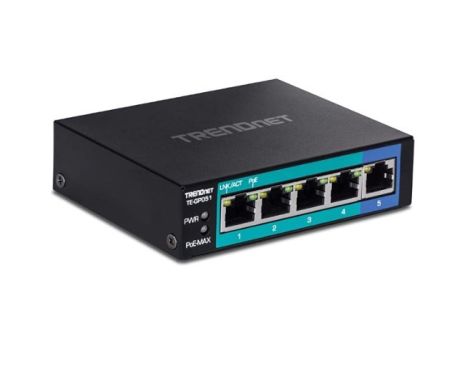

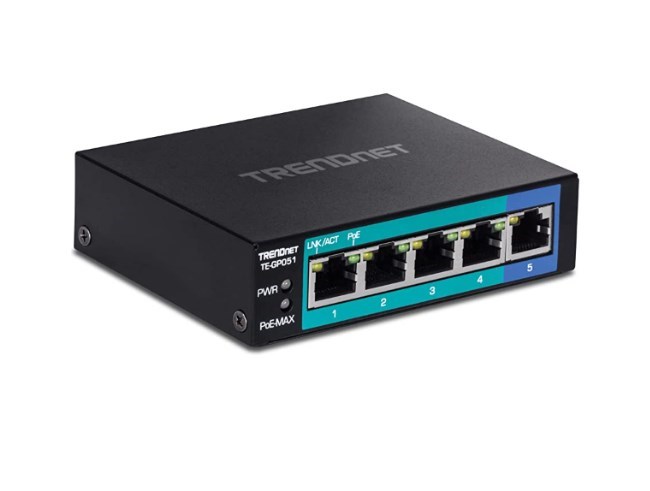

5-Port Gigabit PoE+ Switch
106.02€
141.36€
Description
- 4 x Gigabit PoE+ ports
- 1 x Gigabit port
- 10Gbps switching capacity
- 35W PoE power budget
- Reduces equipment cost by delivering data and power over existing network cables
- Compact wall-mountable metal housing
- Fanless design
| Specifications | |
| Standards | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.3ab | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| Device Interface | 4 x Gigabit PoE+ ports |
| 1 x Gigabit port | |
| LED indicators | |
| Wall mountable | |
| Data Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) |
| Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) | |
| Gigabit: 2000Mbps (full duplex) | |
| Performance | Data RAM Buffer: 125KB |
| Switch Fabric: 10Gbps | |
| MAC Address Table: 2K entries | |
| Forwarding rate: 7.44Mpps (64-byte packet size) | |
| Jumbo Frame: 9KB | |
| Power | Input: 100 – 240V AC, 50/60Hz |
| Output: 48V DC, 0.8A external power adapter | |
| Max. consumption: 3W (no PD) | |
| PoE | PoE budget: 35W |
| PoE Mode A: Pins 1, 2, 3, and 6 for power | |
| Over current protection | |
| Short circuit protection | |
| MTBF | 612,220 hours |
| Operating Temperature | -10° – 55° C (14° – 131° F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions | 105 x 83 x 28mm (4.1 x 3.3 x 1.1 in.) |
| Weight | 0.3kg (0.77 lbs.) |
| Certifications | CE |
| FCC | |
| UL | |
