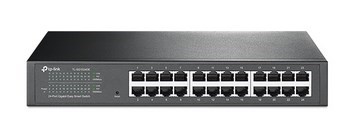

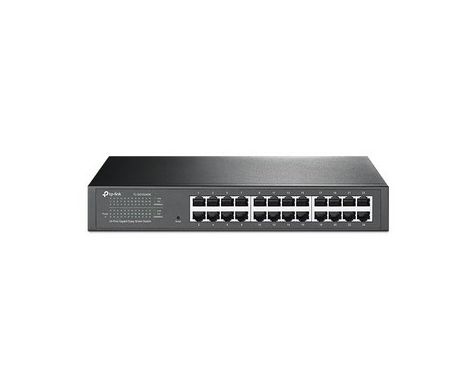

24-Port Gigabit Easy Smart Switch
163.68€
218.24€
Features
• 24-Port Gigabit Easy Smart Switch
• 24 Gigabit RJ45 Ports
• 1U 13-inch Rack-mountable Steel Case
• MTU/Port/Tag-based VLAN
• QoS
• IGMP Snooping
• Web/Utility Management
| Specifications | ||
| Hardware features | Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 24 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
|
| Fan Quantity | Fanless | |
| Physical Security Lock | No | |
| Power Supply | 100-240VAC, 50/60Hz | |
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) | |
| Mounting | Rack Mountable | |
| Max Power Consumption | 15.56W (220V/50Hz) | |
| Max Heat Dissipation | 50.06 BTU/h | |
| Performance | Switching Capacity | 48Gbps |
| Packet Forwarding Rate | 35.7Mpps | |
| MAC Address Table | 8K | |
| Packet Buffer Memory | 4.1Mbit | |
| Jumbo Frame | 10KB | |
| Software features | Quality of Service | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
|
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
|
| Transmission Method | Store-And-Forward | |
| Others | Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1024DE, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet | |
| System Requirements | Microsoft® Windows® for running Utility | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
