eastar TA800 features 8 FXS ports for analog phones and is designed to meet various demands of IP applications. The powerful features and robust performance simplify the integration of legacy phone system and IP-based system
Yeastar TA800 features 8 FXS ports for analog phones and is designed to meet various demands of IP applications. The powerful features and robust performance simplify the integration of legacy phone system and IP-based system.

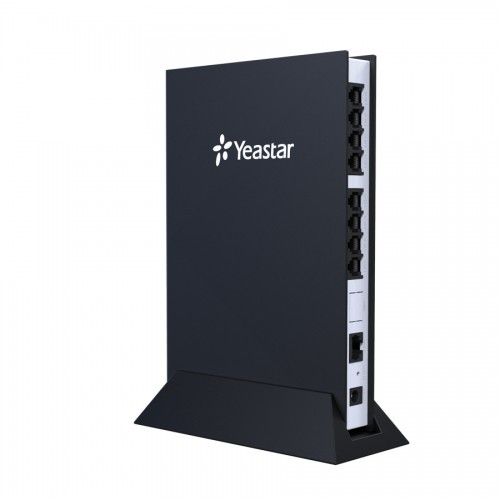

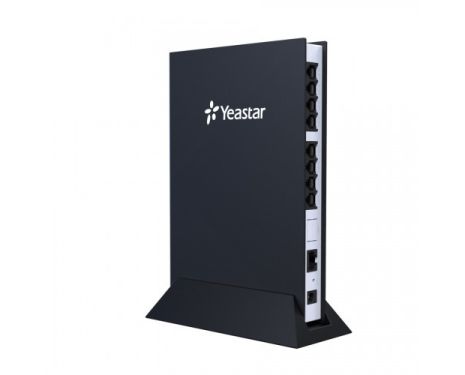

TA800 is a stand-alone FXS VoIP gateway with carrier-grade features and reliability.
- 8 FXS ports
- Fully compliant with SIP and IAX2
- Flexible calling rules
- Superb voice compression with industry standard codecs
- Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
- Tested and certified with Elastix, BroadSoft, and others
| Ports | 8 FXS Ports | |
| Telephony Interfaces | RJ11 | |
| Network Interfaces | 1 10/100Base-T Ethernet | |
| Protocol | SIP (RFC3261), IAX2 | |
| Transport | UDP, TCP, TLS, SRTP | |
| Codec | G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM | |
| Voice Capability | ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer | |
| DTMF Mode | RFC2833, SIP Info, In-band | |
| Fax | T.38 and Pass-through | |
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging | |
| Network | DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN | |
| Network Protocol | FTP, TFTP, HTTP, HTTPS, SSH | |
| Management Protocol | RADIUS, TR-069* | |
| Signaling | FXS Loop Start, FXS Kewl Start | |
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID | |
| Disconnect Methods | Busy Tone, Polarity Reversal | |
| FXO Connectivity | – | |
| Power | 12V, 1A | |
| Dimensions (L × W × H) (mm) | 200 × 137 × 25 | |
| Operation Range | 0°C to 40°C, 32°F to 104°F; | |
| Storage Range | -20°C to 65°C, -4°F to 149°F | |
| Humidity | 10-90% non-condensing | |
| Mounting | Desktop, Wall-mount | |
| Compatibility | Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft |
